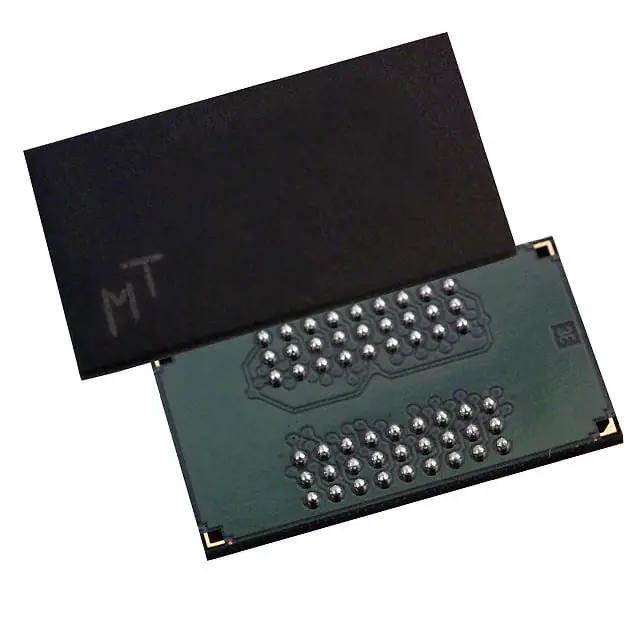

画像は参考用です

MT48LC16M16A2BG-75:D

Name: MT48LC16M16A2BG-75:D
Rating: 4.8 (15 reviews)

+BOM

IC DRAM 256MBIT PAR 54VFBGA

メーカーマイクロンテクノロジー株式会社
メーカー品番 #MT48LC16M16A2BG-75:D
データシート MT48LC16M16A2BG-75:D DataSheet
在庫状況3077

365 日間品質保証

7*24 日間の品質保証

90-時間単位のサービス保証

1日間のアフターサービス保証

仕様

属性	値
Part Status	Obsolete
Base Product Number	MT48LC16M16A2
DigiKey Programmable	Not Verified
Memory Type	Volatile
Memory Format	DRAM
Technology	SDRAM
Memory Size	256Mbit
Memory Organization	16M x 16
Memory Interface	Parallel
Clock Frequency	133 MHz
Write Cycle Time - Word, Page	15ns
Voltage - Supply	3V ~ 3.6V
Operating Temperature	0°C ~ 70°C (TA)
Mounting Type	Surface Mount
Package	54-VFBGA
Supplier Device Package	54-VFBGA (8x14)
Packaging	Tray
Access Time	5.4 ns

概要

Description

The MT48LC16M16A2BG-75:D is a 256Mb (megabit) DDR SDRAM (Double Data Rate Synchronous Dynamic Random-Access Memory) memory chip manufactured by Micron Technology. It features a 16-bit wide data bus and operates at a clock frequency of 75 MHz, providing efficient data transfer rates essential for various applications.
Key specifications include a single power supply voltage of 2.5V, and a 16M x 16 organization, making it suitable for high-density memory needs. The device supports various functionalities, such as burst read/write operations, which enhance performance for graphics, networking, and computing applications.
The suffix “:D” indicates specific configurations or features, such as the presence of a lead-free package, aligning with environmental standards. Its design allows for compatibility with DDR memory controllers, making it a reliable choice for embedded systems and consumer electronics. Overall, the MT48LC16M16A2BG-75:D is an efficient and versatile memory solution for modern digital designs.

Equivalent

The MT48LC16M16A2BG-75:D chip is a DRAM memory module. Equivalent products include the Hynix H57V2562GTR, Micron MT48LC16M16A2BG-75, and Samsung K4S641632D. When searching for equivalents, ensure the specifications such as capacity, speed, and package type match your requirements. Always verify compatibility with your specific application or device.

Features

The MT48LC16M16A2BG-75 is a 256Mb (16M x 16) DDR SDRAM memory chip manufactured by Micron Technology. Key features include:
1. Density: 256 Megabits, organized as 16 Megabytes x 16 bits.
2. Speed: Operates at a speed grade of 75 ns, allowing data transfer rates suitable for various applications.
3. Interface: It utilizes a DDR (Double Data Rate) architecture, which enables data to be transferred on both the rising and falling edges of the clock cycle, enhancing performance.
4. Voltage: Typically operates at a core supply voltage of 2.5V, with I/O voltage of 1.8V.
5. Package: Available in a 54-ball FBGA (Fine Ball Grid Array) package, providing a compact footprint for space-constrained designs.
6. Temperature Range: Designed for standard commercial applications, typically supporting a temperature range of 0°C to 70°C.
7. Applications: Commonly used in consumer electronics, networking equipment, and other applications requiring reliable memory solutions.
These features make the MT48LC16M16A2BG-75 suitable for various high-performance computing tasks.

Pinout

The MT48LC16M16A2BG-75:D is a DRAM (Dynamic Random Access Memory) chip with a pin count of 54 pins.
This device functions as a 256Mb (megabit) DRAM organized as 16 Meg x 16 bits, primarily used for applications requiring high-speed memory. Key functions include:
- Data Storage: It provides temporary storage for data being processed by a system.
- Read/Write Operations: Supports random access for reading and writing data.
- Addressing: Utilizes a multiplexed addressing scheme for efficient access to memory cells.
- Power Management: It has features for low power consumption and is compatible with various operating voltages.
The chip operates at a speed of 75 ns, indicating its access time. It is commonly used in consumer electronics, computing, and networking devices where reliable memory performance is essential.

Manufacturer

The MT48LC16M16A2BG-75:D is manufactured by Micron Technology, Inc. Micron is an American multinational corporation that specializes in semiconductor devices and is one of the largest memory and storage manufacturers in the world. The company primarily focuses on products such as dynamic random-access memory (DRAM), NAND flash memory, and solid-state drives (SSDs). Micron serves a diverse range of markets including computing, networking, mobile, and automotive industries. Founded in 1978 and headquartered in Boise, Idaho, Micron has established itself as a key player in the global semiconductor industry, providing innovative memory solutions that drive advancements in technology.

Application

The MT48LC16M16A2BG-75:D is a 256Mb (16M x 16) DRAM memory chip commonly used in various applications, including:
1. Consumer Electronics: Televisions, gaming consoles, and set-top boxes.
2. Computers: Desktop and laptop memory for improved performance.
3. Networking Equipment: Routers and switches for data buffering and caching.
4. Industrial Applications: Embedded systems requiring reliable memory for processing tasks.
5. Automotive: Infotainment systems and advanced driver-assistance systems (ADAS).
6. Telecommunications: Base stations and network infrastructure for data storage.
Its versatility makes it suitable for a wide range of electronic devices.

Package

The MT48LC16M16A2BG-75:D is a DRAM memory chip packaged in a 54-ball Fine-Pitch Ball Grid Array (FBGA) format.

Frequently Asked Questions

Q: What is the memory size and organization of the MT48LC16M16A2BG-75?
A: It is a 256Mbit SDRAM organized as 16M x 16, providing 16 million words of 16-bit data per access.

Q: What is the maximum clock frequency supported by this DRAM?
A: It supports a maximum clock frequency of 133 MHz, enabling high-speed synchronous data transfers.

Q: What is the voltage supply range required for operation?
A: The operating voltage range is 3V to 3.6V, making it suitable for standard 3.3V SDRAM systems.

Q: What is the access time and write cycle time for this device?
A: The access time is 5.4 ns, and the write cycle time (word, page) is 15ns, ensuring fast read/write operations.

Q: What package options are available for this SDRAM?
A: It comes in a 54-VFBGA package, with a supplier device package of 54-VFBGA (8x14mm), ideal for surface-mount designs.

Q: Is this component still in production and what is its temperature range?
A: The part status is Obsolete. It operates over a commercial temperature range of 0°C to 70°C (TA).

Q: What memory interface does this device use?
A: It uses a parallel memory interface, compatible with standard SDRAM controllers and bus architectures.
